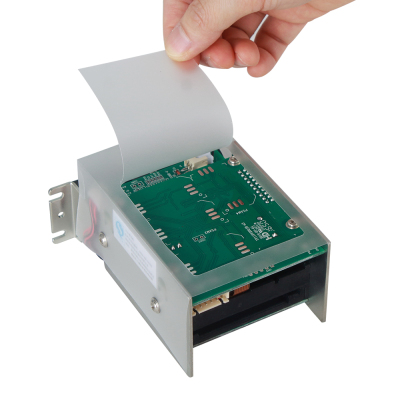

This is a smart card reader designed with ARM Cortex-M3 MCU, which has automatic card lock & eject function and with clog-proof, dust-proof, environmental adaptability. Its interface is customized based on customers’ requirements. It excels in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.
●Compact & light, high reliability & durability
●Support contact IC card (ISO7816)
●Support contactless IC card (ISO14443 TYPE A & B)
●With automatic card lock & eject function, clog-proof, dust-proof, environmental adaptability
●Shock-proof design to avoid card ejection by external force
●Card ejection in emergency
●Power failure protection function (optional)
●Can be supplied with up to 4 PSAM card slots
●Various interface (customized)
●With multi bezel (Optional)
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
CARD TYPE |
Contact IC Cards Contactless IC Cards |
|
|
IC CARD |
ISO/IEC 7816 |
R/W |
|
EMV |
Level 1 Compliant |
|
|
CONTACTLESS CARD(OPTIONAL) |
ISO14443 Type A & B & MIFARE |
R/W |
|
LIFETIME |
>500000 Cycles |
|
|
CARD LOCK & EJECT MECHANISM LIFETIME |
>500000 Cycles |
|
|
INTERFACE |
RS-232 |
|
|
POWER SUPPLY |
DC7-15V ± 5% |
|
|
CURRENT |
Current: ≤50mA Current: ≤800mA |
|
|
WORKING TEMPERATURE |
-40-+65°C |
|
|
WEIGHT |
約297g | Approx 297g |
|
|
REMARK |
With Shutter & Multi Bezel(Optional) |
|
